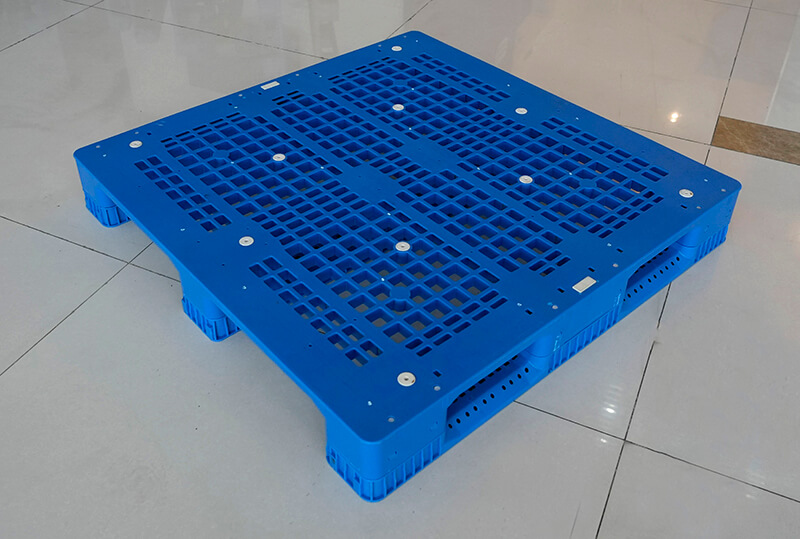

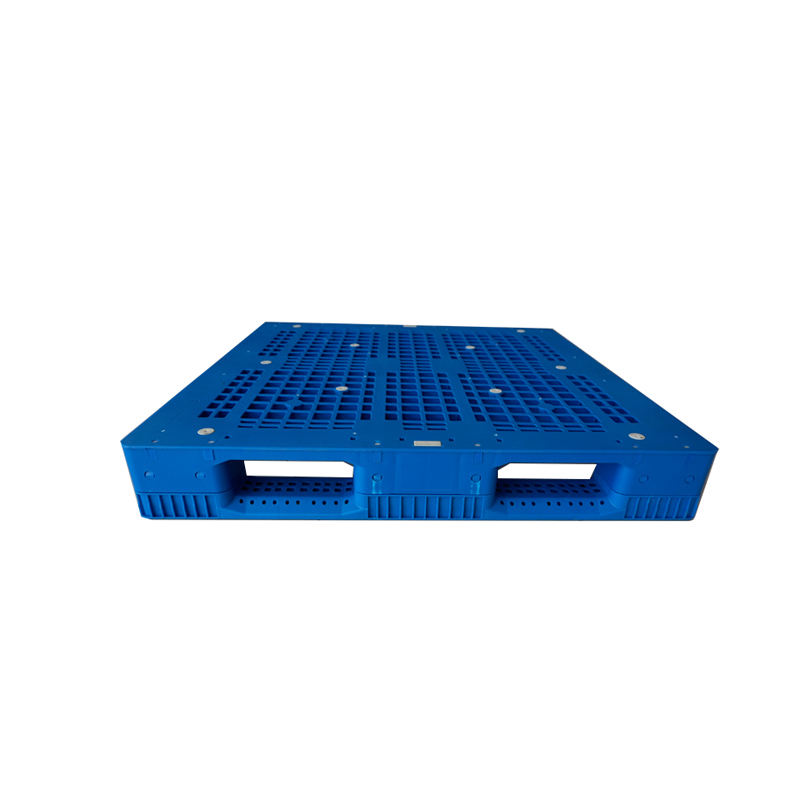

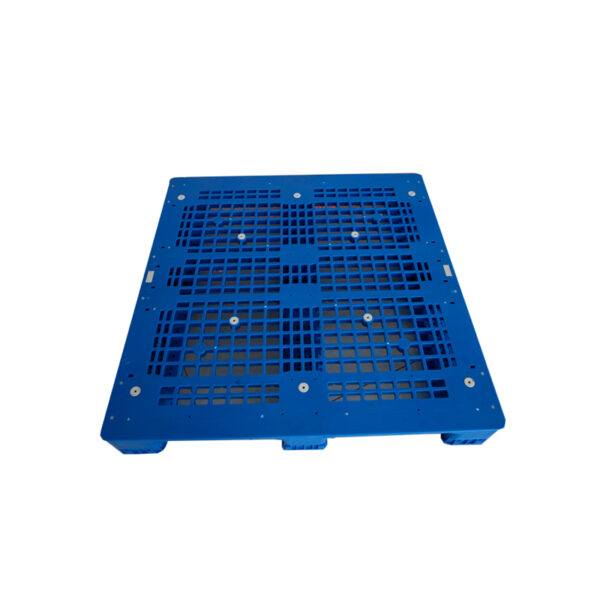

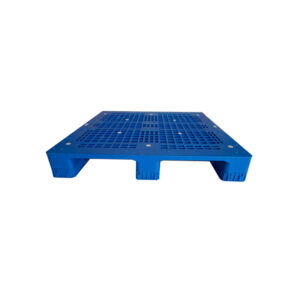

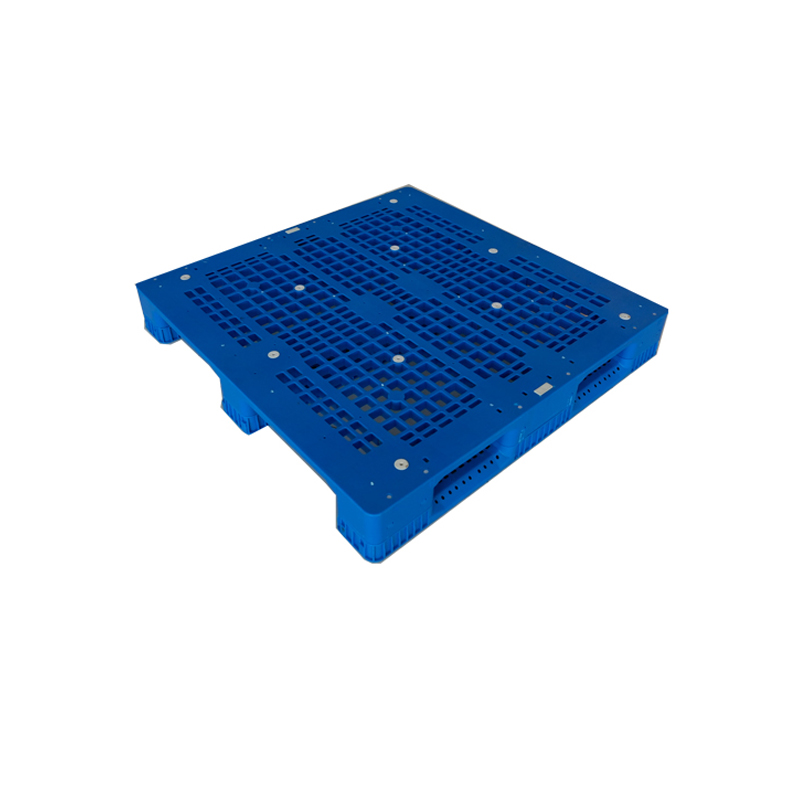

1200×1200mm Assembled Three-Runner Grid Deck Plastic Pallets for warehouses
This Modular Grid Deck Plastic Pallet features a 3-runner (Chuan-style) bottom structure and a ventilated grid surface, making it ideal for racking, storage, and logistics applications.
Unlike traditional one-piece pallets, this model is assembled with bolts instead of welding, allowing for easy part replacement and extended service life.
Optional steel reinforcements are available to increase racking load capacity.
It’s widely used in industries requiring durability, hygiene, and cost-effective reusability, such as food, cold chain, pharmaceuticals, and warehousing.
Key Features of Three-Runner Grid Deck Plastic Pallets

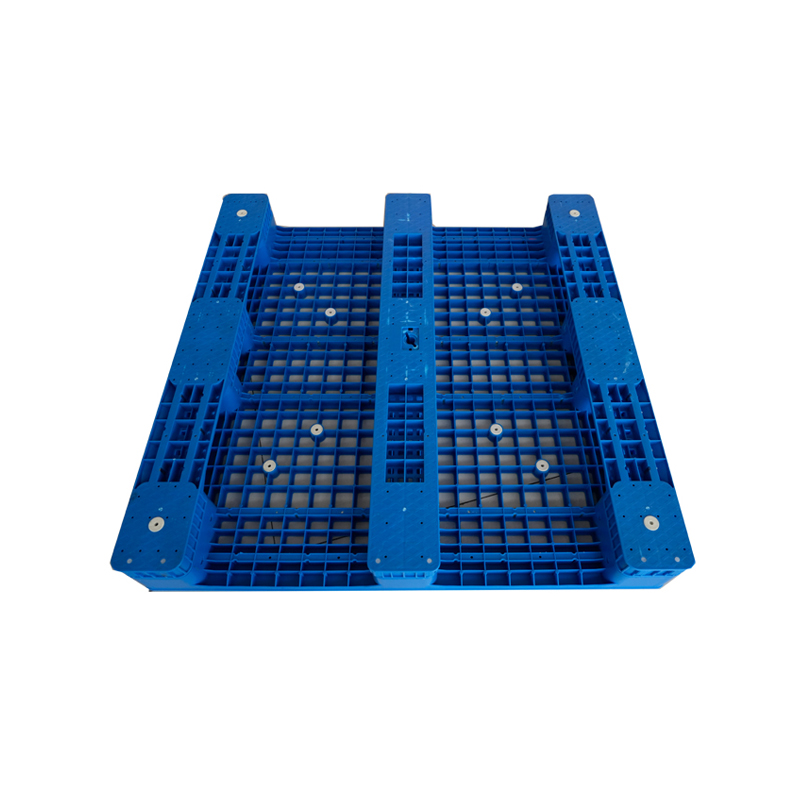

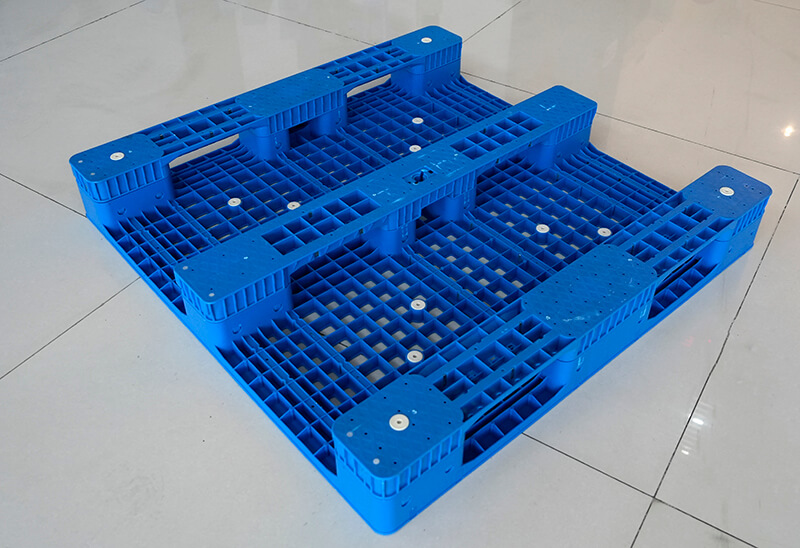

Structure: 3-runner bottom with grid (ventilated) top deck
Assembly Type: Modular, no welding – bolted connection for top and bottom
Material: HDPE or PP (100% virgin or recycled)
Reinforcement: Optional 6 steel tubes (top) + 6 tubes (bottom)
Entry: 4-way forklift and pallet jack access
Surface: Anti-slip, washable, and hygienic design
Color & Logo: Customizable according to your brand
Why Choose Three-Runner Grid Deck Plastic Pallets?
Replaceable Parts: Each panel and runner can be individually replaced if damaged, reducing replacement costs.
Weld-Free Design: No risk of weld cracking, ensures long service life even under heavy use.
Modular Flexibility: Ideal for maintenance-intensive environments or regions with high handling damage rates.
Washable Grid Deck – Easy-to-clean surface, suitable for food, pharmaceutical, and cold chain applications.
Customizable Options – Available with steel reinforcements, RFID/barcode tracking, logo printing, and more.
Specs
| Size: | 1200X1200X165mm |
| Static Load: | 5000 kg |
| Dynamic Load: | 1500 kg |
| Rack Load: | 1000 kg |
| Molding Method: | Injection-molded components with bolted assembly |
| Fork Entry: | 4-way |
| Color: | Blue (default) / Custom |
Other Available Sizes
Same model, multiple options to meet your needs.
| Size (mm) | Size (mm) | Size (mm) |
| 1200×1000×150 | 1300×1100×170 | 1300×1300×170 |
| 1200×1000×165 | 1300×1200×170 | 1400×1200×170 |
| 1200×1400×170 | 1300×1200×180 | 1400×1400×170 |
| 1300×1100×160 | 1300×1300×160 |
Application
Warehouse Racking Systems –
Compatible with beam racks and drive-in racking for safe vertical storage. Steel reinforcements available for higher load requirements.Cold Chain Logistics –
Ideal for frozen food, seafood, and pharmaceutical cold storage due to its ventilated deck and easy-to-clean surface.Export & International Shipping –
Reusable and robust for global shipping. Standard pallet dimensions fit containers, while modular design lowers replacement costs.- Industrial Closed-Loop Use –
Perfect for reuse in production lines, distribution centers, and automation equipment. Resistant to impact and long-term handling - Food & Beverage Processing –
Hygienic and chemical-resistant design with optional anti-slip and drainage features. Suitable for cleanrooms and wet areas.
Selection notes for 1200×1200 three-runner grid pallets
This 1200×1200 assembled three-runner grid deck pallet should be selected by cargo footprint, loaded weight, deck contact area, handling equipment and storage support. Grid decks and flat decks should be compared against the actual load. For beam racking, provide the rack span and support points with the loaded pallet before final selection. View 1200×1200 plastic pallets. For deck, runner and handling comparisons, read our modular plastic pallet selection guide.
Buyer FAQ
What should be checked for a grid deck?
Confirm the load contact area, cleaning needs and working process.
Can it be used in racking?
Only after the actual rack support and loaded pallet condition are reviewed.
